Compliance
ASME Section VIII, Division 2, through Appendix 46.
Mandatory Appendix 46 of Division 1 allows a Division 1 vessel to use the rules of Division 2. PlutoHX uses them for flanged joints and for tubesheets.
The rules
Three references, one route.
| Mandatory Appendix 46 | In Division 1: opens the Division 2 rules to a Division 1 vessel, both Part 4, design by rule, and Part 5, design by analysis |
|---|---|
| Part 4.16 | In Division 2: flanged joints |
| Part 4.18 | In Division 2: tubesheets |
In PlutoHX
A choice for flanges and for tubesheets.
Custom and standard flanges can follow Division 1, Mandatory Appendix 2, or Division 2, Part 4.16. Tubesheets can follow ASME Part UHX, or Division 2, Part 4.18.

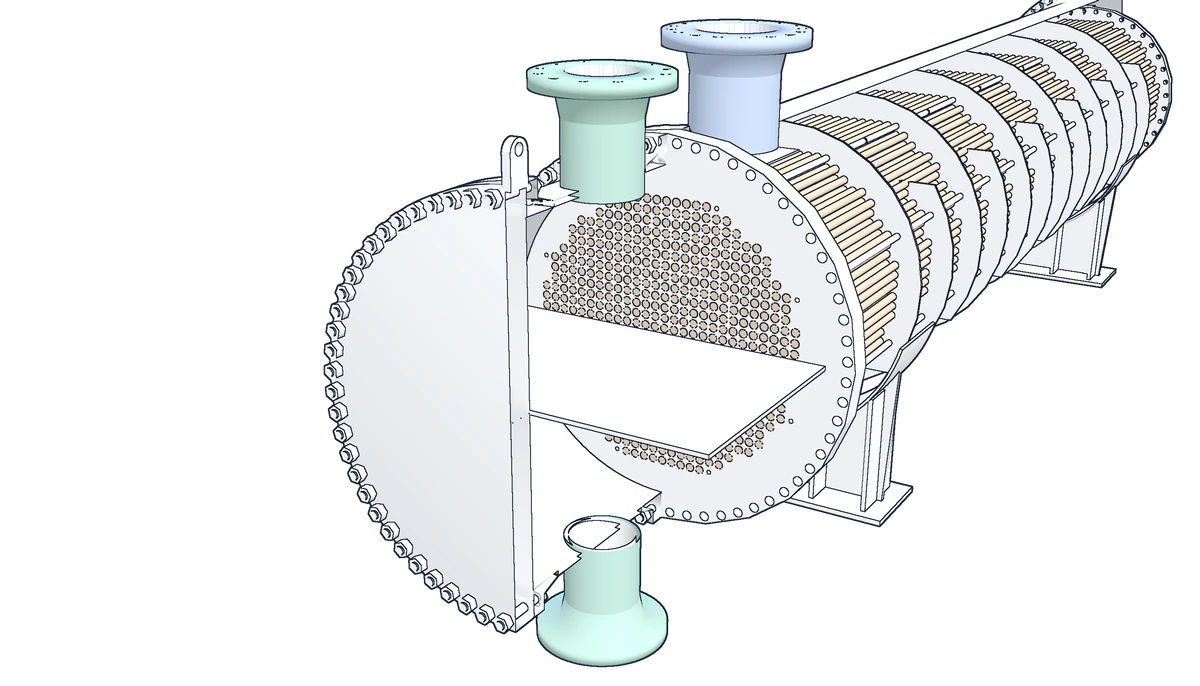

The design itself stays a Division 1 design: the reference exchanger, for example, is designed to Division 1 with the Code stamp.
More on tubesheets
The tubesheet page shows the layout of the reference exchanger and the Part UHX rule for each exchanger type.
