Compliance
Supporting standards.
Beside the design code, PlutoHX uses a set of standards for flanges, gaskets, bolted joints, nozzle loads, saddles, materials, and welding.
The standards
Each standard, and what PlutoHX uses it for.
| ASME B16.5 | Pipe flanges, nominal pipe size (NPS) 1/2 to NPS 24: the nozzle flanges |
|---|---|
| ASME B16.47 | Large diameter steel flanges, NPS 26 to NPS 60 |

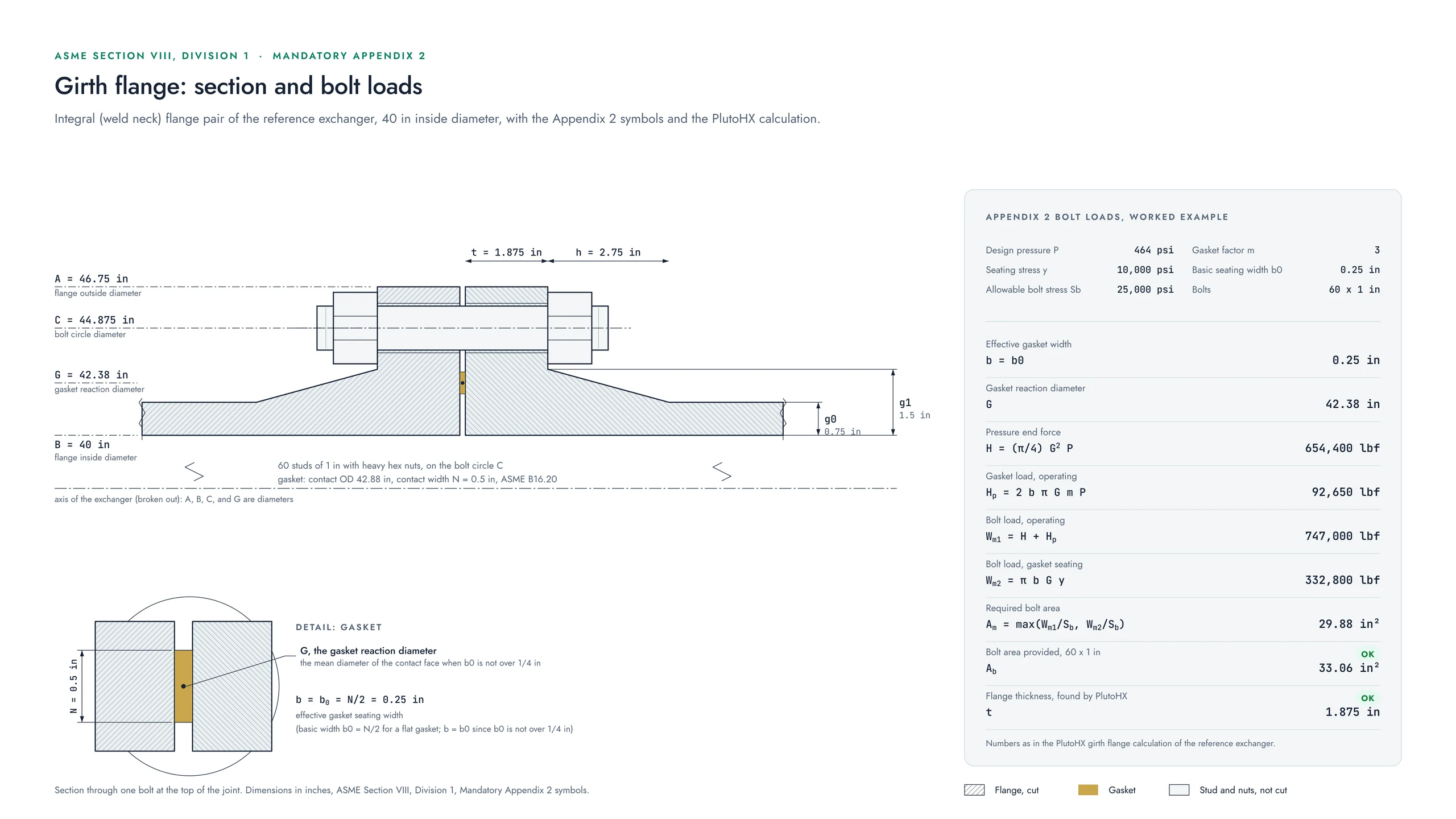

| ASME B16.20 | Metallic gaskets, such as the gasket of the girth flange example |
| ASME PCC-1 | Bolted flange joint assembly: the assembly bolt stress and the gasket stress |
|---|---|
| ASME B18.2.2 | The heavy hex nuts in the bill of materials of the girth flange example |
| WRC 107, 297, 537 | Welding Research Council (WRC) Bulletins: local stresses at the nozzles from piping loads |
|---|
| Zick | L. P. Zick’s method for horizontal vessels on two saddles |
|---|
| ASME Section II, Part D | Material properties and allowable stresses |
|---|---|
| ASME Section IX | Welding procedures and welder qualification, for example for tube-to-tubesheet welds |
Nozzle flanges by size
Two standards, split at NPS 24.
A nozzle flange up to NPS 24 follows ASME B16.5; from NPS 26 up to NPS 60 it follows ASME B16.47. PlutoHX picks the standard from the nozzle size.
